seams submerge arc automatic pipe welding machine

Yueda PLC control column boom seams submerge arc automatic pipe welding machine

Welding manipulator also called as welding column and boom which combine with welding rotator and welding positioner to become the dedicated automatic welding device for welding structure parts’ internal and external circular seam, fillet weld, inside and outside longitudinal seam and has different structure forms such as fixed type, rotary type, versatile position type, etc.

And according to user’s requirements, we also can choose structure or equipped with different kinds of welding machines and adding tracking, swing, monitoring, solder recycling& conveying functions. The welding manipulator is widely used for many kinds of industries such as pressure vessel, cooling device, power plant construction, metallurgical construction, engineering machinery, shipbuilding, roll surfacing welding, petrochemical construction, etc.

Advantages and Features for Automatic pipe welding manipulator machine for seam welding:

1. The column and beam are of shaped Steel Structure, with planar guide rail design, good rigidity and low deflection.Double column more stable, more suitable for higher equipment requirements.

2. Beam’s lifting with AC motor constant speed operation, steady lifting with constant speed.

3. Beam’s stretch with AC variable frequency stepless speed regulation, constant torque output, steady speed, guide rail is 45# steel, stress reduction treatment after welding, plane forming, high intensity, good stability and guarantee no deformation long time.

4. Beam’s stretch with gear and rack transmission, high transmission accuracy, steady operation, speed digital display and can be preset.

5. Beam’s lifting, beam’s stretch, trolley advance and retreat all equipped with electrical and mechanical double protection device.

6. Adopt high quality slewing bearing, flexible rotation, long lifespan.

7. Adopt plastic towing wiring technology, durable, convenient, beautiful and safe.

Control station and hand operator form remote control method, adopt computer control technology, all welding parameters digital display and can be preset, flexible operation and control station reserved linkage interface which can be interconnected with other products. Hand controller in your hand can make remote control easily for welding manipulator, welding center and other structure, and make real-time control for welding process.

Main technical parameters for Automatic pipe welding manipulator machine for seam welding:

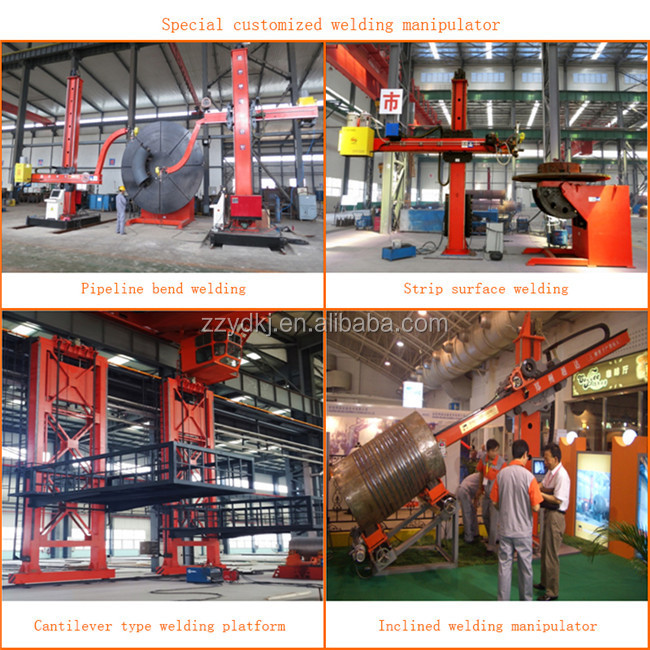

Special customized welding manipulator pictures for reference:

Zhengzhou Yueda Technology Equipment Co.,Ltd(former name is Zhengzhou Yueda Automatic Welding Equipment Co.,Ltd) which is located in Zhengzhou city,Henan province. As a high-tech enterprise with 20 years' history and specializing in the design and manufacture of welding&cutting automation equipments. Our company is committed to provide clients at home and abroad with one- stop automatic welding and cutting solutions.

Our main products: welding column&boom(welding manipulator) series, welding rotator series,welding positioner series,welding robot, automatic cutting machine series, electric tower rod welding machine series,surfacing welding machine series, wind tower production line, special tanker production line, grinding machine series, painting production line and robot system integration.

In order to provide outstanding service to our clients, we continue to introduce talents, increase equipment technology R&D investment and set up professional technical teams. We are looking forward to your visit and cooperation, and we will be a reliable partner of you.

Our services

1. We are welding equipment MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
2. Professional package and shipping service.
3. Free spare parts and maintenance during warranty period, and lifelong guiding service through email and telephone.
4.Technical engineers are ready to go abroad for installation,trainning and maintenance.
5. We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.

Professional package and shipping service, machines packaged by exporting wooden case or naked package put into shipping containers according to machine dimension. And customized package is available to meet clients' special requirements.
